Product Description

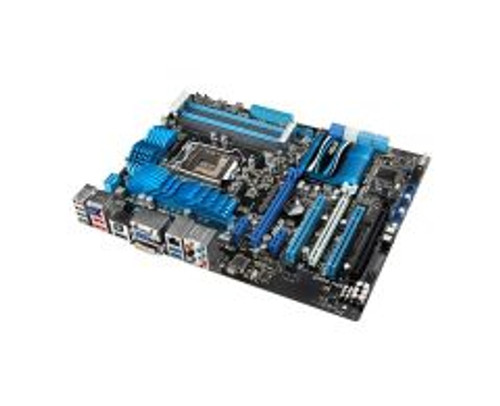

P8Z68-VPRO-PB-R | Asus | P8Z68-V Pro Intel Z68 Sli/Crossfirex Socket 1155 Atx MotherProduct Details
Product Videos
Custom Field
Form Factor ATX
CPU Socket Type LGA 1155
Supported CPU(s) Intel Core i3 ProcessorIntel Core i5 ProcessorIntel Core i7 Processor
Supported CPU Technologies Intel Turbo Boost Technology
Chipset Intel Z68 Express
Number of Memory Slot(s) 4
Number of Memory Channel(s) 2
Supported Memory Standard(s) PC3-10600 (DDR3-1333)PC3-12800 (DDR3-1600)PC3-14900 (DDR3-1866)PC3-8500 (DDR3-1066)
Maximum Installed Memory 32 GB
Expansion Slots PCI-E 2.0 x16
Expansion Slots Details 2 x PCIe 2.0 x16 (x16 or dual x8)1 x PCIe 2.0 x16 (x4 mode, black) *12 x PCIe x12 x PCI
Storage Controller SATA 3.0 GbpsSATA 6.0 Gbps
Audio Controller Realtek ALC892
Network Gigabit Ethernet
Connectors/Ports Chassis Fan ConnectorCPU Fan ConnectorD-SubDVIHDMIPS/2 KeyboardPS/2 MouseRJ-45USB 2.0USB 3.1
Connectors/Ports Details Back I/O Ports1 x Bluetooth module(s)1 x DVI1 x D-Sub1 x HDMI1 x eSATA 3Gb/s1 x LAN (RJ45) port(s)2 x USB 3.1 Gen 16 x USB 2.01 x Optical S/PDIF out6 x Audio jack(s)Internal I/O Ports1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen
